Manual and actuated - on-off & isolation duty, flanged or screwed.
Ball and butterfly valves are quarter-turn on-off isolation valves - a ball valve uses a rotating ball with a bored passage, a butterfly valve a rotating disc across the flow path. Both are supplied manual or pneumatically actuated.
We supply the Flowell range in investment-cast stainless and carbon steel bodies with PTFE seats for tight, Class VI shut-off, plus the fully actuated versions with rotary pneumatic actuators for remote or automated operation.
Flowell process valves for manual on-off and isolation duty.
Three-piece body ball valve for easy in-line maintenance without removing the valve from the pipeline.

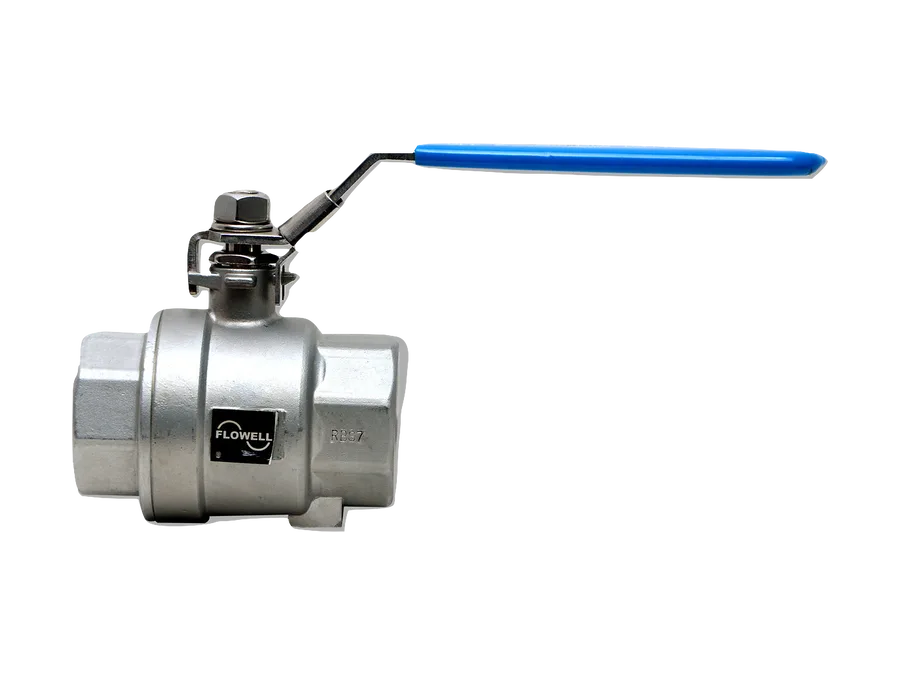

Two-piece body ball valve for compact, economical isolation duty.

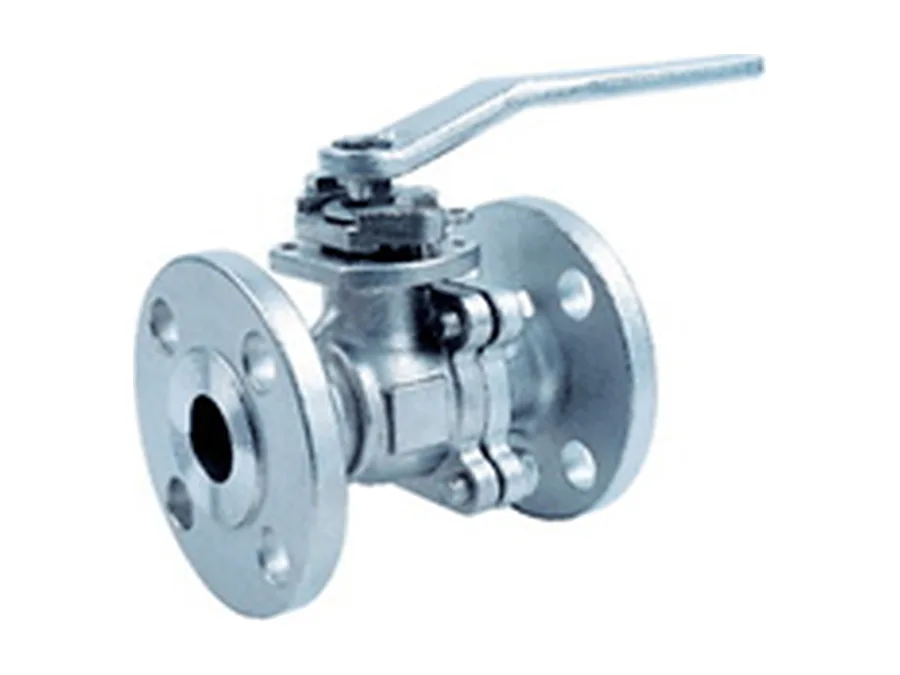

Fire-safe tested ball valve with flanged ends for critical isolation service.
Quarter-turn butterfly valve for isolation and throttling duty, wafer or lug body style.
The same Flowell valve bodies, pre-assembled with a rotary pneumatic actuator as a complete automated unit.

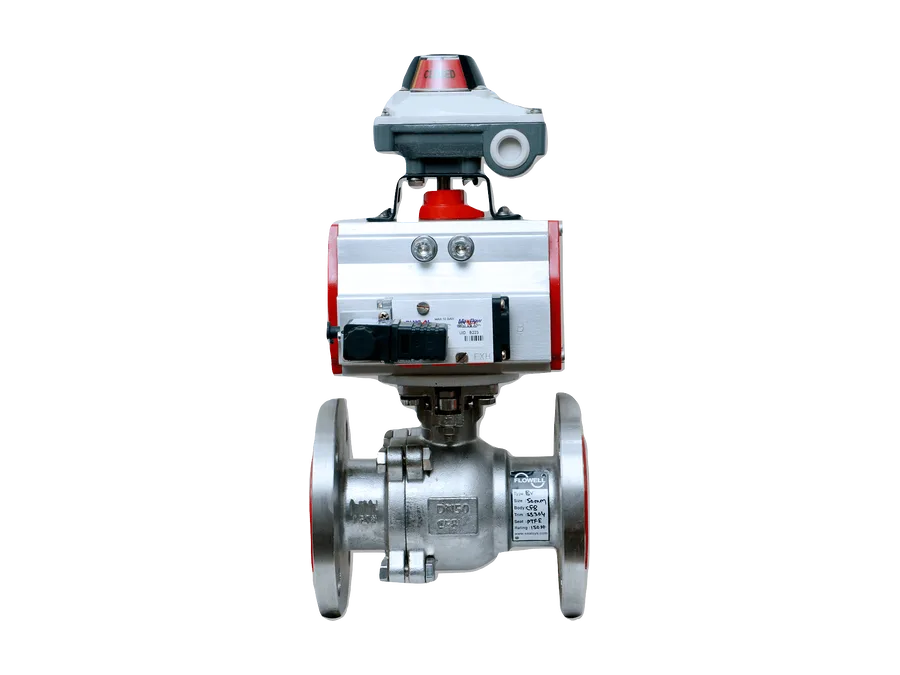

Ball valve with mounted rotary actuator, flanged connection.

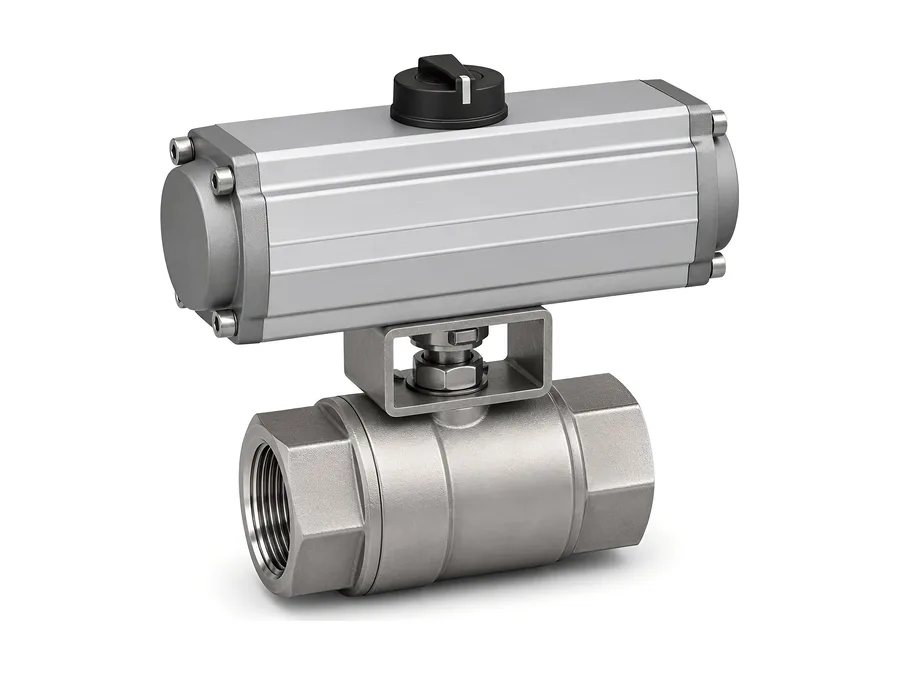

IllustrationBall valve with mounted rotary actuator, screwed or socket-weld connection.

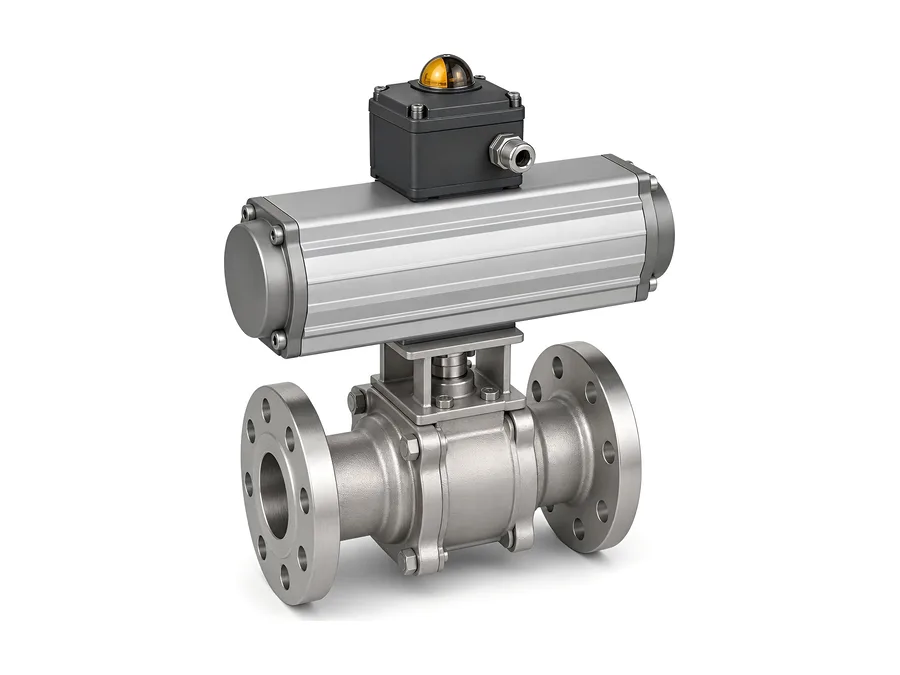

IllustrationActuated ball valve fitted with a limit switch box for remote position feedback.

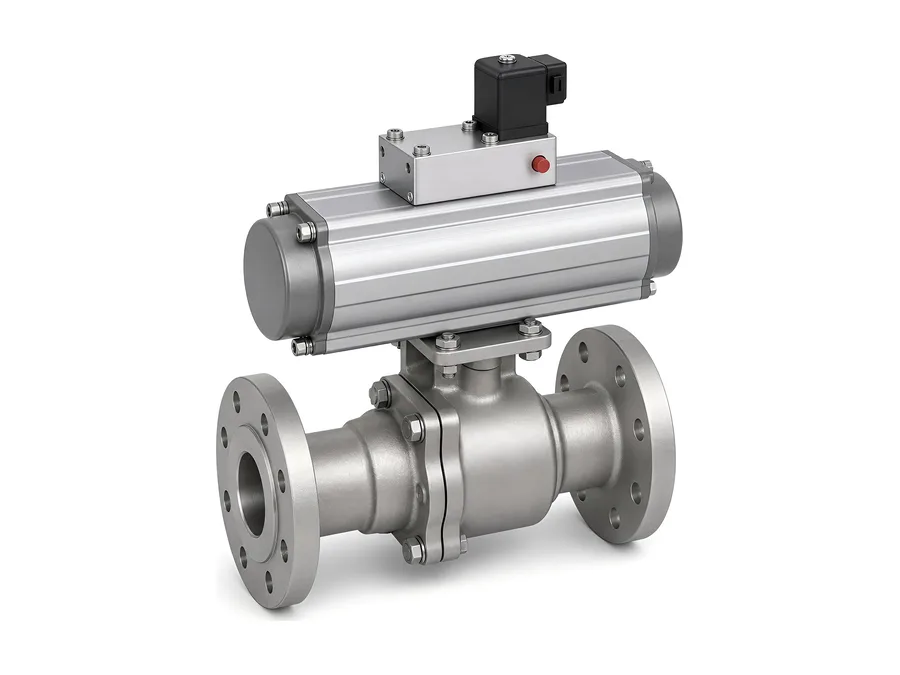

IllustrationActuated ball valve pre-piped with a Namur-mounted solenoid valve.

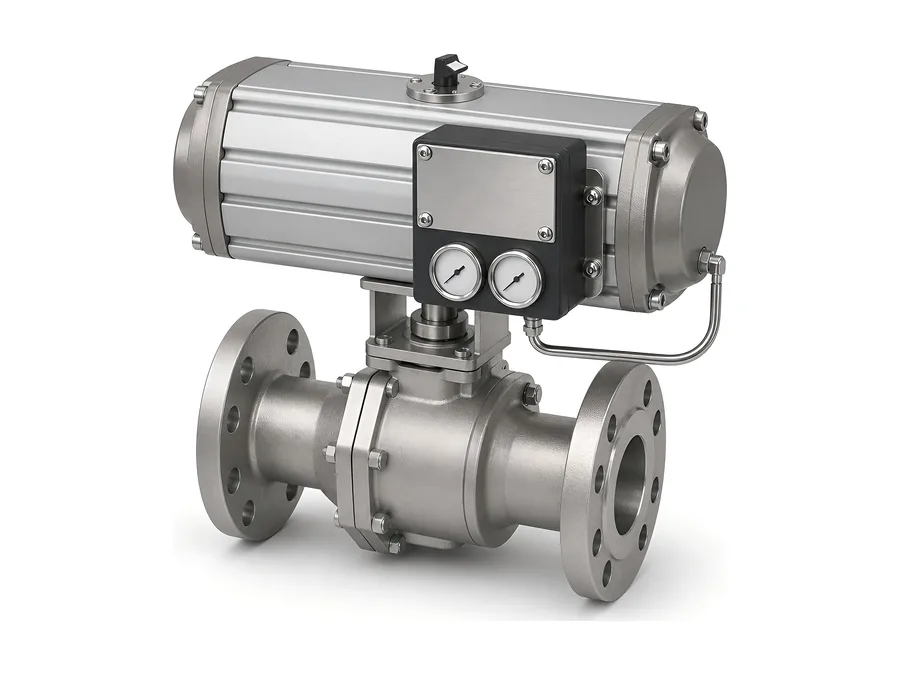

IllustrationActuated ball valve fitted with a positioner for proportional (modulating) control rather than simple on-off.

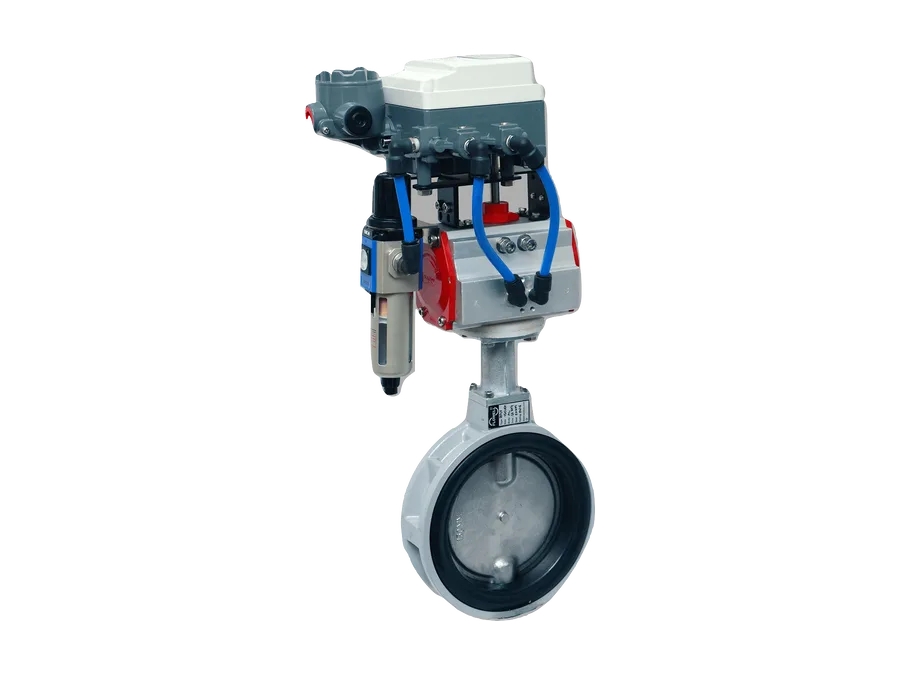

Butterfly valve with mounted rotary actuator - limit switch, Namur solenoid and positioner options as above.
Class VI (per ANSI/FCI 70-2, referenced against BS 5351 duty here) is the tightest standard bubble-tight shut-off classification for a soft-seated valve - effectively zero measurable leakage across the closed valve.
In most cases, yes, provided the valve stem and mounting pad match ISO 5211. Send the valve details and we’ll confirm the correct actuator size and mounting kit.
Send the duty, media and sizing you have - we target a quote inside 24 hours.
